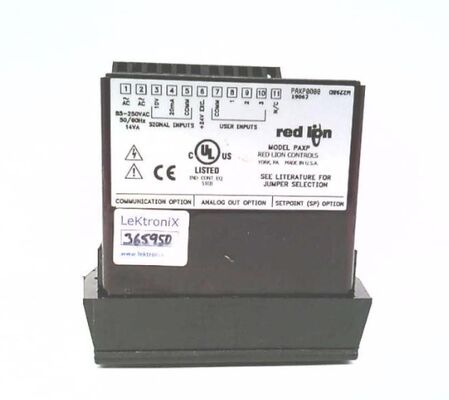

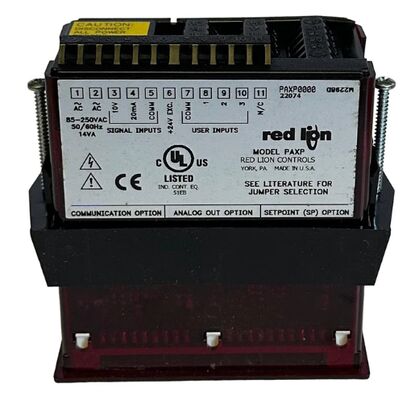

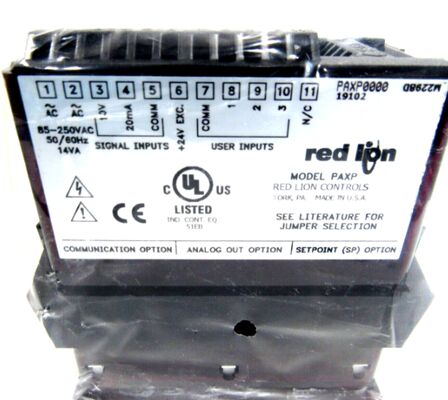

Red Lion Controls PAXP0000 5 Digit Display Programmable Function Keys CE Approved Process Input Meter

Miejsce pochodzenia Chiny
Nazwa handlowa Red Lion
Orzecznictwo CE
Numer modelu PAXP0000
Minimalne zamówienie 1
Cena US$340/PC
Szczegóły pakowania Karton
Czas dostawy 1 tydzień
Zasady płatności L/C, D/A, D/P, T/T, Western Union
Możliwość Supply 500szt
Szczegóły Produktu
Podkreślić

Red Lion differential pressure gauge

,

PAXP0000 process input meter

,

industrial pressure gauge with warranty

Zostaw wiadomość
opis produktu

Product Attribute

Attribute Value

Manufacturer Part Number PAXP0000
Manufacturer Red Lion Controls
Number of Digits 5
UNSPSC Code 39120000
Unit of Measure EA
Mounting Type Panel Mount
Series PAX Series
Measurement Range 20 mA/10 VDC °F
Measuring Range -1 to 13 %, -2 to 26 %
Maximum Opening Temperature 50 °C
Minimum Operating Temperature 0 °C
Supply Voltage 125 V
Special Features Programmable Function Keys
Temperature Range 0 to 50 C
Panel Cut Out 1⁄8 DIN DIN
Primary Type Electronic
Function Process
Accuracy 0.12% of Reading +3 µA/+3 mV mA
Type Electronic
Dimensions 0.20 in D
Approvals CE Approved, cUL Recognized, UL Certified
Termination Cage Clamp
Dimensions, Cutout, Inches 45 x 92 mm
Display Digit Height 0.56 in
Display Resolution 1 μA/1 mV Bits
Display Type LED
Connection Type Cage-Clamp
