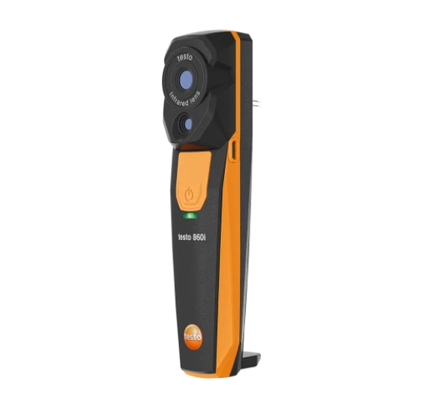

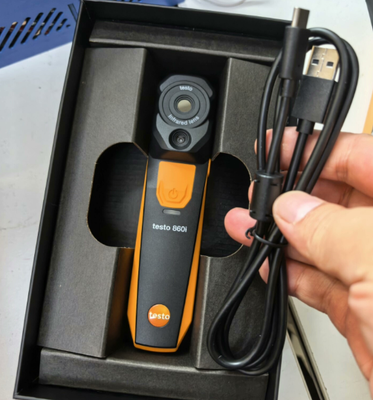

New Original Testo 860i Kit Wireless Thermal Imager for Smartphones - In Large Quantity Available Now

Name: New Original Testo 860i Kit Wireless Thermal Imager for Smartphones - In Large Quantity Available Now
Brand: Mengchuan Instrument Co,Ltd.
SKU: Zestaw 860i
Price: 495 USD
Availability: InStock

Miejsce pochodzenia	Chiny
Nazwa handlowa	testo
Numer modelu	Zestaw 860i
Minimalne zamówienie	2
Cena	USD＄495
Szczegóły pakowania	Oryginalne opakowanie
Czas dostawy	w magazynie
Zasady płatności	L/C, D/A, D/P, T/T, Western Union
Możliwość Supply	20szt

Szczegóły Produktu

Zostaw wiadomość

opis produktu

General technical data	Protection class IP54
General technical data	System requirements requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0

Infrared image output	Field of view 48° x 36°
	Focus Fixed focus
	Minimum focus distance 1 ft / 0.3 m
	Image refresh rate 9 Hz
	Infrared resolution 256 x 192 pixels
	Thermal sensitivity 50 mk
	Spectral range 8 to 14 µm

Image output visual	Minimum focus distance 1 ft / 0.4 m
Image output visual	Image size 640 x 480 pixels

Image presentation	Color palettes iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
	Digital zoom yes
	Display option IR image / real image
(in the testo Smart App)

Measurement	Accuracy 5.4°F (±3 °C) or ±3 % of m.v. (at ambient temp. 14°F to 104°F (-10 to 40 °C) and scene temp. 32°F to 302°F (0 to +150 °C) or 212°F to 662°F(+100 to +350 °C)
	Emissivity 0.01 to 1
	Measuring range -4 to +662 °F (-20 to +350 °C)
	Reflected temperature manual; (via testo Smart App)

Measuring function	Analysis function Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
	Electrical mode - manual Input of current, voltage or power
	Humidity mode - manual yes
	Humidity measurement with humidity measuring instrument Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App
	Electrical measurement with clamp meter Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App
	Application-specific measurement functions DeltaHeat; DeltaCool; Humidity mode
(in the testo Smart App)

Imager equipment	Full screen mode yes
	WLAN Connectivity Communication with the testo Smart App; WIFI: IEEE 802.11a/n/ac*
	Bluetooth Peer-to-peer advertising for fast connection set-up*
	Remote-controlled operation Up to 32ft (10 m) from the mobile device
* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

Imager storage	File format image .bmt; .jpg; .csv
Imager storage	Storage device On a mobile device

Power supply	Battery type Integrated Li-ion rechargeable battery
	Charging options USB-C
	Charging time Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

Ambient Condition	Air humidity 5 to 95 %RH, non-condensing
	Vibration IEC 60068-2-6
	Impact resistance test 4.921 ft. / 1.5 m
	Storage temperature -4.0° to 158.0 °F / -20 to +70 °C
	Operating temperature 14.0° to 122.0 °F / -10 to +50 °C

Physical specification	Tripod mounting 1/4" - 20UNC
	Mobile device attachment Clip span: min. 134 mm, max. 190 mm and device depth up to max. 12 mm
	Weight 6.9 oz. / 195 g
	Dimensions 6 x 2 x 1 in. / 165 x 45 x 38 mm
